Fan with filter, 30 (41) m3/h, 120x120, 230V 50/60Hz, IP54 PTF1000 Plastim

Ventilation grille with fan and filter, size 120x120 mm, for installation in electrical panel, automation cabinet, ATM or gaming terminal. PTF1000, manufacturer Plastim (Turkey)

Used for the intake of outside air in electrical cabinets, ATMs, payment terminals, gaming machines, automation cabinets, control panels, service stations. Usually installed on the side walls of the boxes to maintain the IP rating.

• External dimensions: 120x120x58.5 mm
• Installation size: 92x92mm
• Volume flow: 30 (41) m3/h
• Noise level: 28 (31) dB(A)
• Bearing: Sleeve type bearing
• Operating voltage: 220-230VAC, 50/60Hz
• Current consumption: 0.08(0.07) A
• Rated power: 14 (13) W
• Electrical connection: Lead wire
• Flow direction: From outside to inside (can be changed)
• Operating temperature: -10/+70 °C
• Protection degree: IP54
• Plastic material: ABS UL94 V0 flame retardant
• Sealing: Self-adhesive
• Color: RAL 7035 (RAL 7032 on request)
• Weight: 0.4 kg
• Installation: Quick clip-on

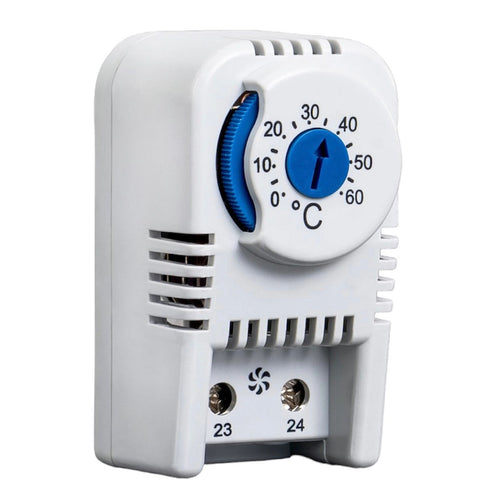

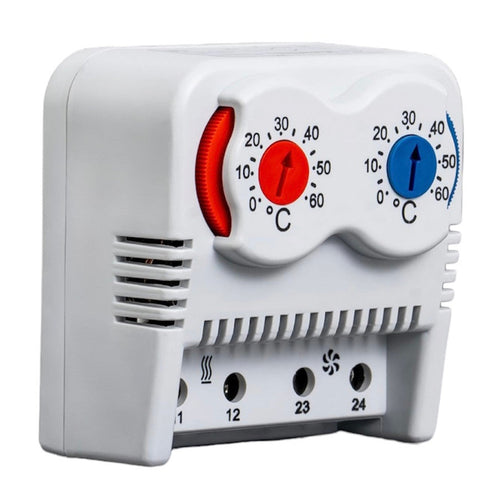

To ensure automatic air exchange and temperature maintenance with this fan, a simple bimetallic thermostat or a more complex temperature controller is required; both devices can be purchased on our website.

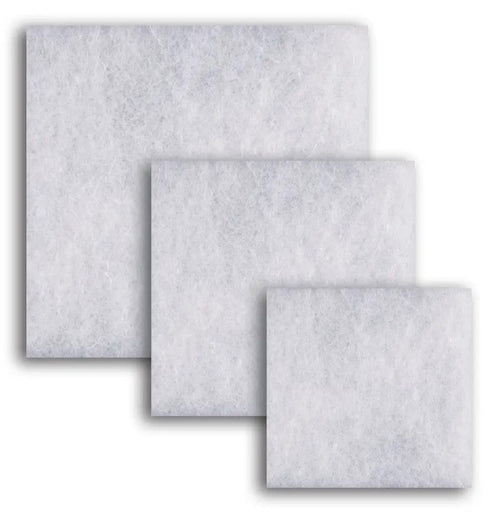

The ventilation grille is equipped with a replaceable filter. This filter cartridge can be easily replaced or cleaned and reused.
