Fan with filter, 175 (245) m3/h, 210x210, 230V 50/60Hz IP54 PTF3000 Plastim

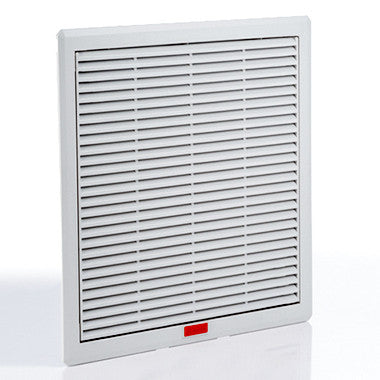

Ventilation grille with fan and filter, size 210x210 mm, for installation in electrical panel, automation cabinet, ATM or gaming terminal. PTF3000, manufacturer Plastim (Turkey)

Used for the intake of outside air in electrical cabinets, ATMs, payment terminals, gaming machines, automation cabinets, control panels, service stations. Usually installed on the side walls of the boxes to maintain the IP rating.

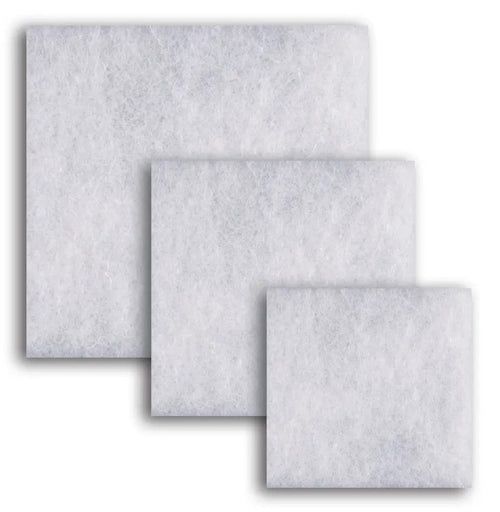

The ventilation grille is equipped with a replaceable filter. This filter cartridge can be easily replaced or cleaned and reused.

• External dimensions: 210x210x92 mm
• Installation size: 175x175mm
• Volume flow: 125 (175) m3/h
• Noise level: 52 (53) dB(A)
• Bearing: Ball bearing
• Operating voltage: 220-230VAC, 50/60Hz
• Current consumption: 0.23(0.22) A
• Rated power: 37 (35) W
• Electrical connection: 3-pole terminal
• Flow direction: From outside to inside (can be changed)
• Operating temperature: -10/+70 °C
• Protection rating: IP54
• Plastic material: ABS UL94 V0 flame retardant
• Sealing: Polyurethane sealing
• Color: RAL 7035 (RAL 7032 on request)
• Weight: 1.45 kg
• Installation: Quick fastening

To ensure automatic air exchange and temperature maintenance with this fan, a simple bimetallic thermostat or a more complex temperature controller is required; both devices can be purchased on our website.
