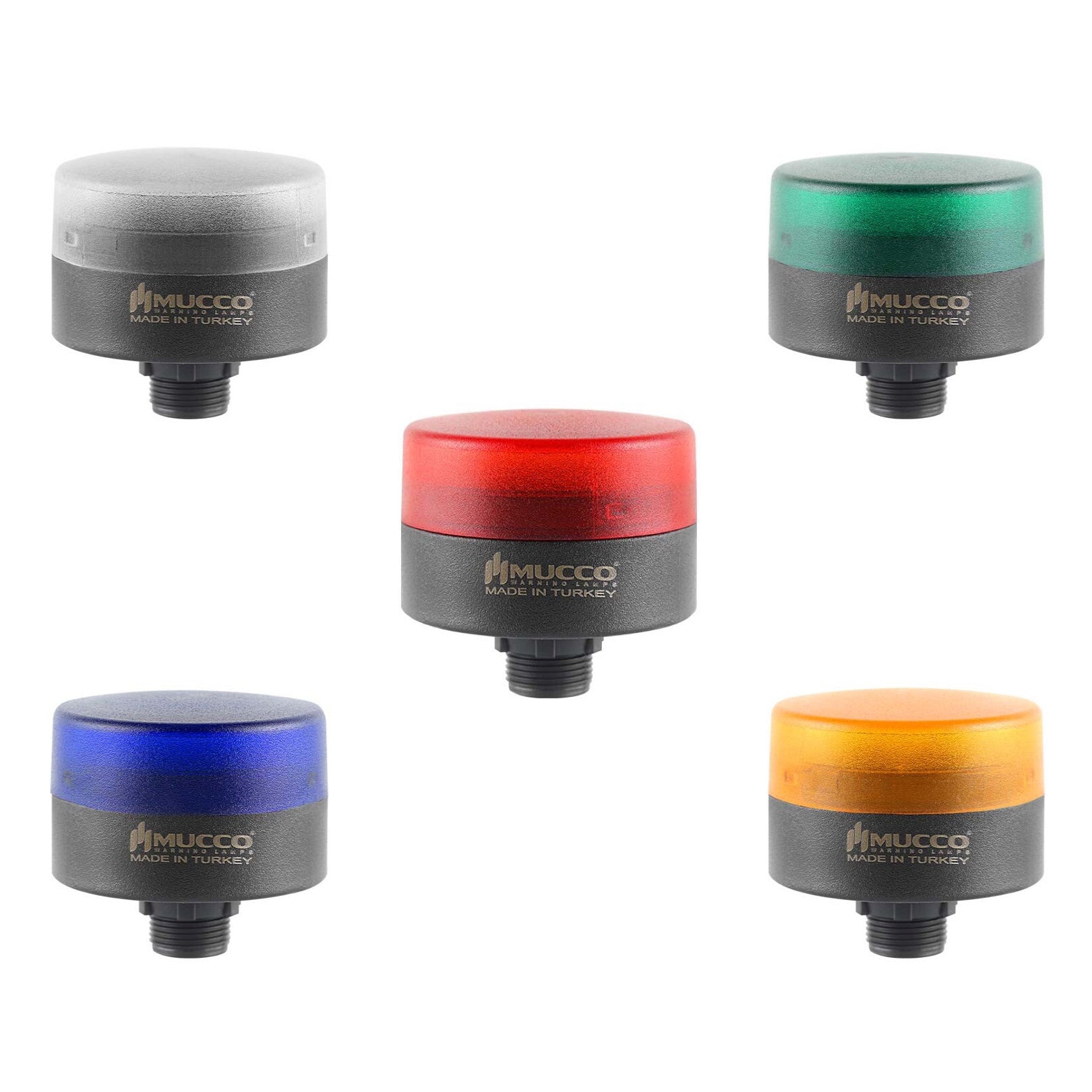

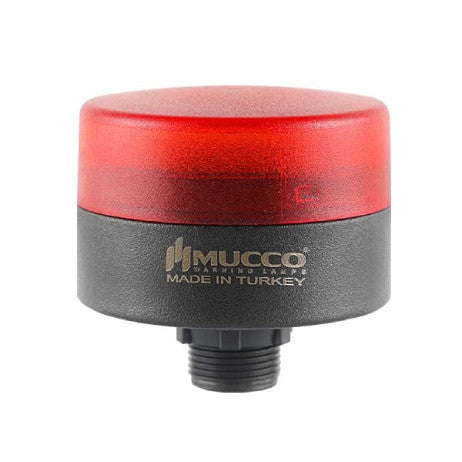

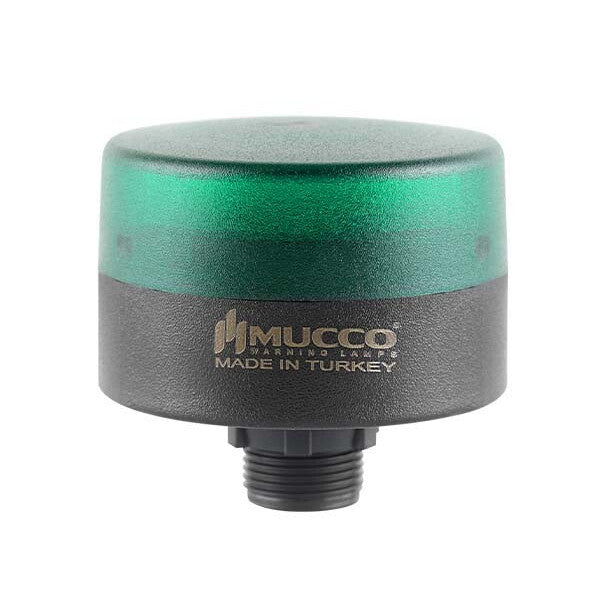

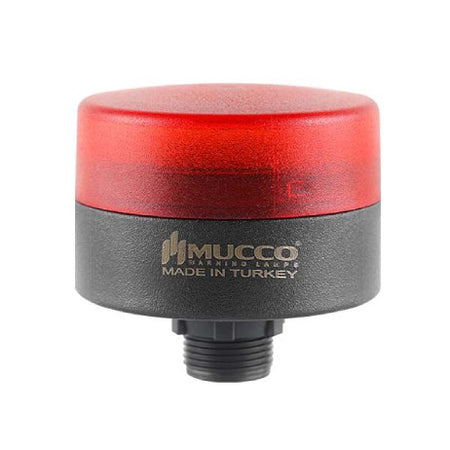

SNT-MS725, SNT-MS715 signaling beacon with sound signal, ø70mm, connecting nut
Failed to load pickup availability
Online payment by card - after completing the order you will be redirected to the payment gateway, payment confirmation will be sent to your email
Cash on delivery - payment according to the payment instructions will be made to the driver of the transport company
By transfer - you will receive an advance invoice to your email no later than the next working day, on which you will find the account number that you enter when making the payment.
By invoice - this payment option is available to partners who have signed a framework agreement with our company.
If you would like to use the last 2 methods, call our manager and he will give you instructions on how to receive an invoice with or without VAT.
The electrical equipment we supply meets high quality standards, has a 24-month warranty and meets all EU requirements.
In the event of a complaint, no fee is charged for returning the goods.
Series 70 SNT-MS725, SNT-MS715 signal beacon with bell, ø70mm, connection nut, manufacturer MUCCO (Turkey)
| Category | Signal beacon | |
| Rated voltage, current consumption | 24V/DC (without sound indicator) | 110mA ±10% |
| 24V/DC (with buzzer) | 150mA ±10% | |
| 40~260V AC/DC (without bell) | 78mA ±10% 50-60 Hz | |
| 40~260V AC/DC (with bell) | 95mA ±10% 50-60 Hz | |
| Material | ABS (body) + polycarbonate (cover) | |
| Cover color | Red, yellow, green, blue, white | |

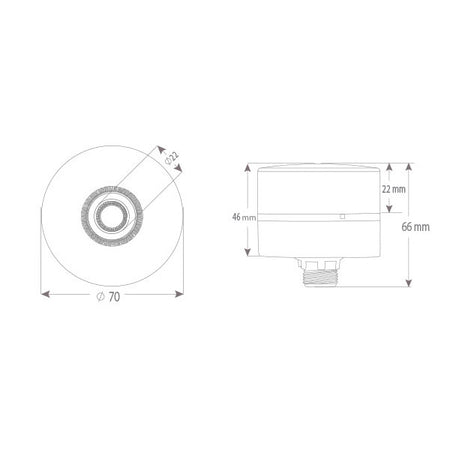

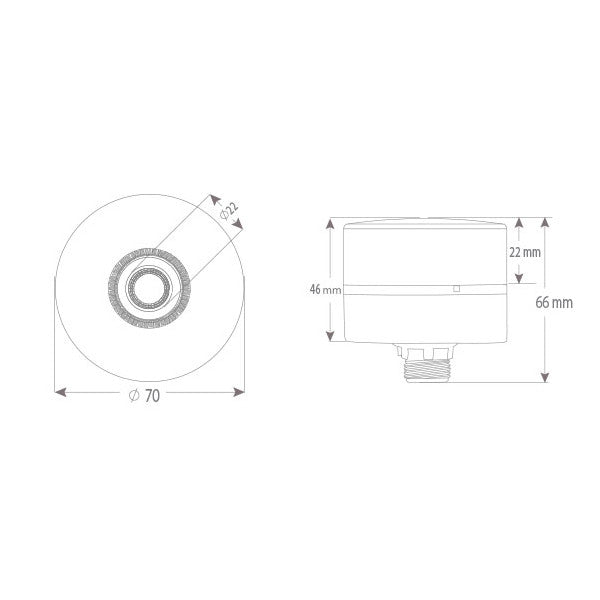

| Cover diameter | ø70 mm (M22 nut - end cap) | |
| Light source | SMD LED | |
| Type of optical signal | steady light, flashing | |
| Input response | On/off: max. 10 ms | |
| Type of acoustic signal | 1 tone (cable control) | |
| Alarm | 94 ~ 100 dB at 1 m (3.3 ft) | |
| Connection | Wire | |
| Mounting type | Surface, wall | |
| Operating temperature | -20°C to +50°C (-4°F to +122°F) | |
| Expected lifetime | Minimum of 50,000 hours | |
| Protection rating | IP65 | |
| Protection | Resistance to water, dust, heat, and UV rays | |
| Certificates and quality proofs | ISO-9001, CE, RoSH2 and EAC |
