Vendor: TENSE

Three-phase monitoring/protection relay for overvoltage and undervoltage control

Barcode: GKM-11
€39,68
€39,68
excl. VAT: €33
Out of stock
  • Description
  • Instructions
  • Payment methods
  • Warranty

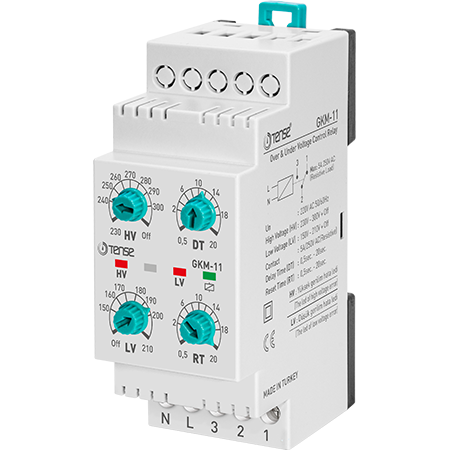

GKM-11 - Single-phase overvoltage and undervoltage relay, TENSO

Product description

The GKM-11 relay is used to protect sensitive equipment against overvoltage and undervoltage in single-phase distribution systems. When the set upper or lower voltage limit is exceeded, the relay opens the output contact and disconnects the load, preventing equipment damage.

Function and operation

  • Status indication:

    • Normal status - green LED

    • High voltage failure - red LED "HV"

    • Low voltage error - red LED "LV"

  • Adjustable protection: upper and lower voltage limits, switching delay (DT) and reset time (RT)

  • Relay contact: 5 A / 250 V AC (resistive load)

Technical data

  • Operating voltage: 220 V AC, 50/60 Hz

  • High voltage range: 230-300 V

  • Low voltage range: 150-210 V

  • Delay and reset time: 0.5-20 s

  • Power consumption: <6 VA

  • Operating temperature: -20 °C to +55 °C

  • Mounting: DIN rail

  • Weight: 0.1 kg

  • Maximum cable cross-section: 2.5 mm²

  • Maximum installation altitude: 2000 m

Applications

  • Single-phase distribution and equipment

  • Sensitive electrical equipment, household appliances, industrial machinery
