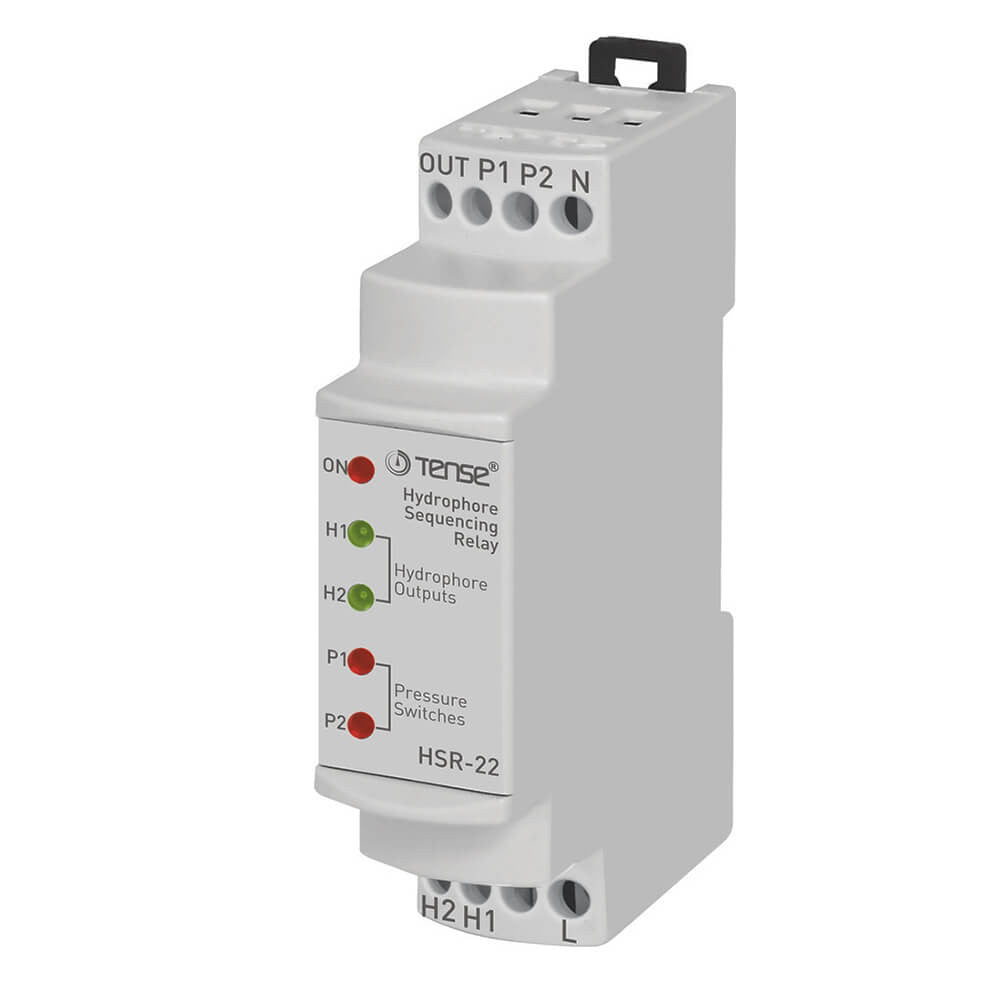

Hydrophore sequence relay

General information

The Hydrophore displacement relays were designed to

to start when necessary and operate simultaneously.

Device use and operating principle

The sequence of hydrophones is as follows: (H1) - (H2) - (H3) and (H1-H2) -.

(H2-H3) - (H1-H3). Activates the hydrophones with the same number,

where the switches are closed and keeps them operating for a period of time "t". At the end of time "t", the next hydrophone or group of hydrophones will be activated and

t continues this way. It deactivates the hydrophones with the same number,

where the switches are open.

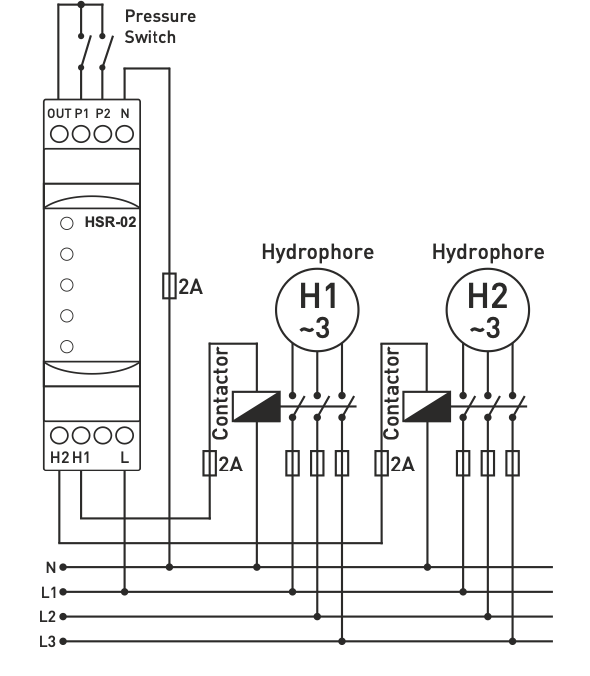

Note: Do not connect electrical power to the inputs and outputs (P1, P2, P3).

of the pressure switch.

Maintenance

Turn off the device and unplug the connectors. Clean the device cone with a cotton swab. Do not use wires or chemicals that may

damage the device. After cleaning, make sure the device is working.

Warning

Use the device according to the operating instructions.

Do not use the device in a humid environment.

The set includes a switch and a circuit breaker.

Place the switch and circuit breaker near the equipment so the operator can easily reach them.

Mark the switch and the circuit breaker as

Release connector for the equipment.

Technical specifications:

Operating voltage (Un).....: 150-250V AC

Operating frequency.......: 50/60 Hz.

Operating power..............: <6VA

Operating temperature....: -20°C.... +55°C

Time(t)......................: 10 minutes

Display......................: HSR-02=5 x LED, HSR-03=7 x LED

Connection type............: Clamp connection

Contact.....................: 3A/250V AC (resistive load)

Number of hydrophones........: 2 (HSR-02) and 3 (HSR-03)

Cable diameter..............: 1.5 mm² (HSR-02), 2.5 mm² (HSR-03)

Weight..........................: Maximum 220g.

Mounting..........................: Vertical panel mounting or DIN rail mounting.
