Water level control relay for a tank with heater protection - Tense SSR-09

Product description

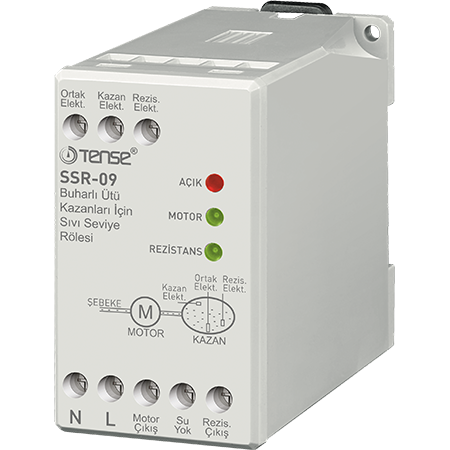

The SSR-09 relay from Tense is a modern unit designed for automatic water level control in boilers, storage tanks, and water heaters.
Ensures reliable water supply, timely pump shutdown, and above all, effective protection of the electric heating element against dry run.

The device uses capacitive electrodes to monitor the water level and automatically controls the pump and heater according to the current situation in the tank.

Main advantages

• Dry run protection for the boiler and heater - extends the equipment's lifespan.

• Automatic water level control: the pump turns on when the water level is low and turns off when it reaches the upper level.

• Heater protection - if there is no water in the heater, the device immediately cuts off its power supply.

• LED indicator of operation of the pump and the heater for easy status checking.

• Easy installation - DIN rail mounting, transparent screw terminals.

• Compact dimensions, low consumption.

• Wide operating voltage range of 170-260 VAC - stable operation even during power fluctuations.

Operating principle

The SSR-09 operates with two electrodes located in the tank:

1. Lower electrode (minimum level)

   • If the water level falls below this electrode, the relay activates the pump and starts pumping water.

2. The upper electrode (maximum level)

   • When the upper level is reached, the relay automatically switches off the pump.

3. Protective electrode on the heating element

   • If there is no water in the heater, the relay cuts power to the heater and prevents overheating.

This intelligent logic ensures safe and economical operation of the entire system.

Use of

• Electric boilers and water heaters

• Heating systems with storage tanks

• Domestic and industrial water storage tanks

• Water supply and pumping systems

• Drinking or domestic water tanks

Installation and connection

• Mounting on a standard DIN rail in the cabinet.

• Connection via screw terminals.

• The electrodes must be installed in the tank at the required levels.

• For stable operation, the manufacturer recommends using conductors with a minimum of 2.5 mm².

Note: The electrodes (level probes) are not included and must be ordered separately.
