Electrical panel gray plastic door 500x700x250mm IP65 PP3010 (P-BOX 5070)
- Regular price
- €152,36
- Regular price
-
- Sale price
- €152,36
- Unit price
- per
Couldn't load pickup availability
Frequently bought together
– Lock for P-BOX cabinets
- Regular price
- €11,16
- Regular price
-
- Sale price
- €11,16
- Unit price
- per
Notified by email when this product becomes available
Pre-order product
- Description
- Instructions
- Payment methods
- Warranty

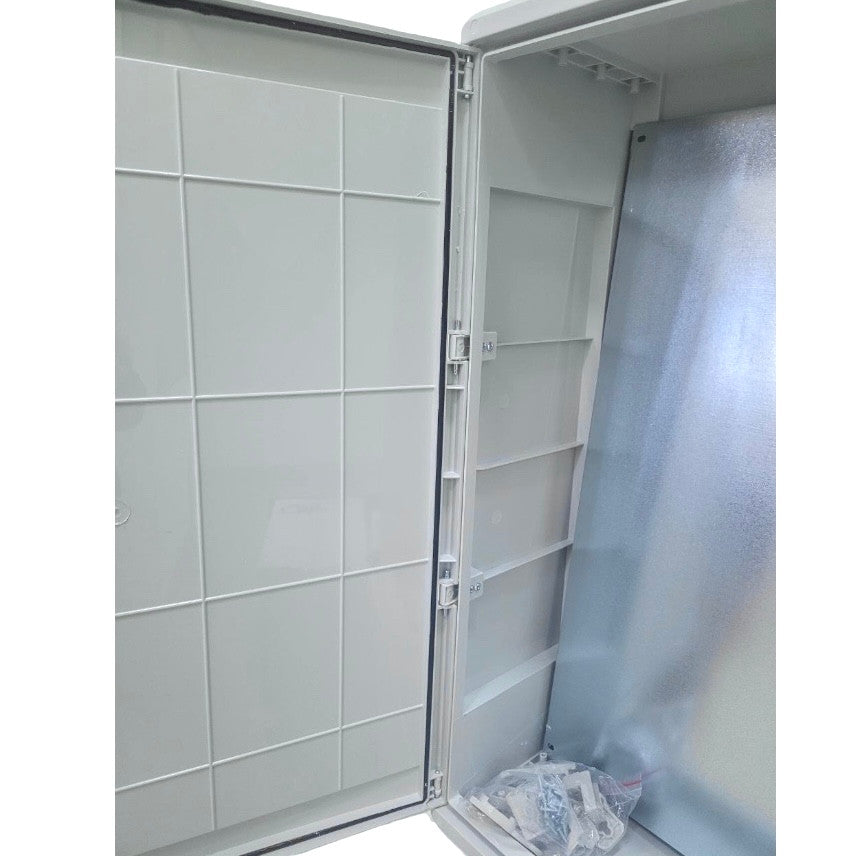

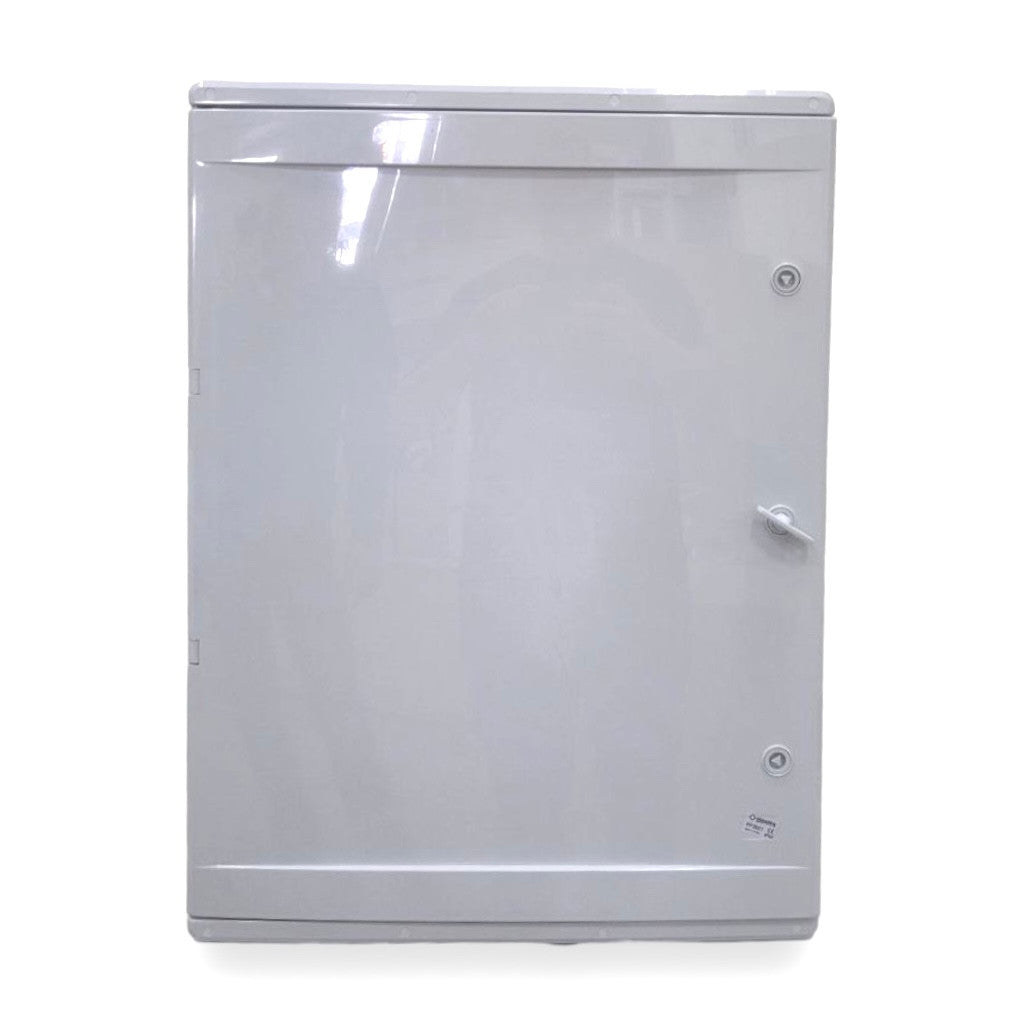

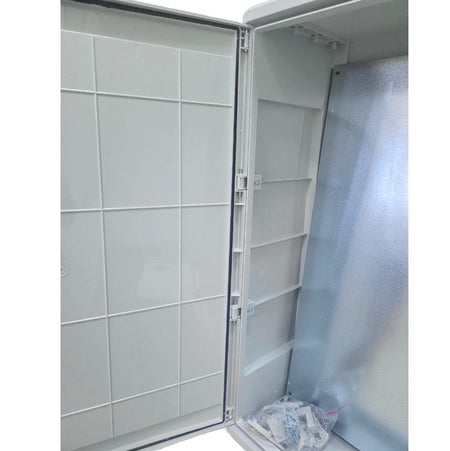

Plastic electrical panel, gray door, dimensions 500x700x250mm, IP65, PP3010 Plastim / P-BOX 5070
The new waterproof plastic boxes from the Turkish company Plastim open a new chapter in the use of plastic protective boxes for automation and power distribution tasks.
-
Reinforced rails with metal pins
-
New box design with corner reinforcements and increased thickness of the door and the entire product.
-
Extended temperature range in which the protector maintains all its enhanced properties -35/+60°C
- Mounting panel made of solid, lightweight galvanized metal, fully corrosion-resistant
- Can be equipped with transparent doors and DIN rails reinforced with metal pins;
MAIN TECHNICAL FEATURES
- Mounting panel: made of 1 mm thick galvanized steel
- Material.
- Width: 500 mm
- Height: 700 mm
- Depth: 250 mm
- Color: light gray
- Protection: IP65, IK08
- Rated voltage: up to 690 V
- Maximum current: up to 800 A
- Operating temperature: -35°C to +65°C
- Weight: 10.1 kg
