Transparent plastic door for electrical panel 400x500x175mm IP65 PP3013

Online payment by card - after completing the order you will be redirected to the payment gateway, payment confirmation will be sent to your email

Cash on delivery - payment according to the payment instructions will be made to the driver of the transport company

By transfer - you will receive an advance invoice to your email no later than the next working day, on which you will find the account number that you enter when making the payment.

By invoice - this payment option is available to partners who have signed a framework agreement with our company.

If you would like to use the last 2 methods, call our manager and he will give you instructions on how to receive an invoice with or without VAT.

The electrical equipment we supply meets high quality standards, has a 24-month warranty and meets all EU requirements.

In the event of a complaint, no fee is charged for returning the goods.

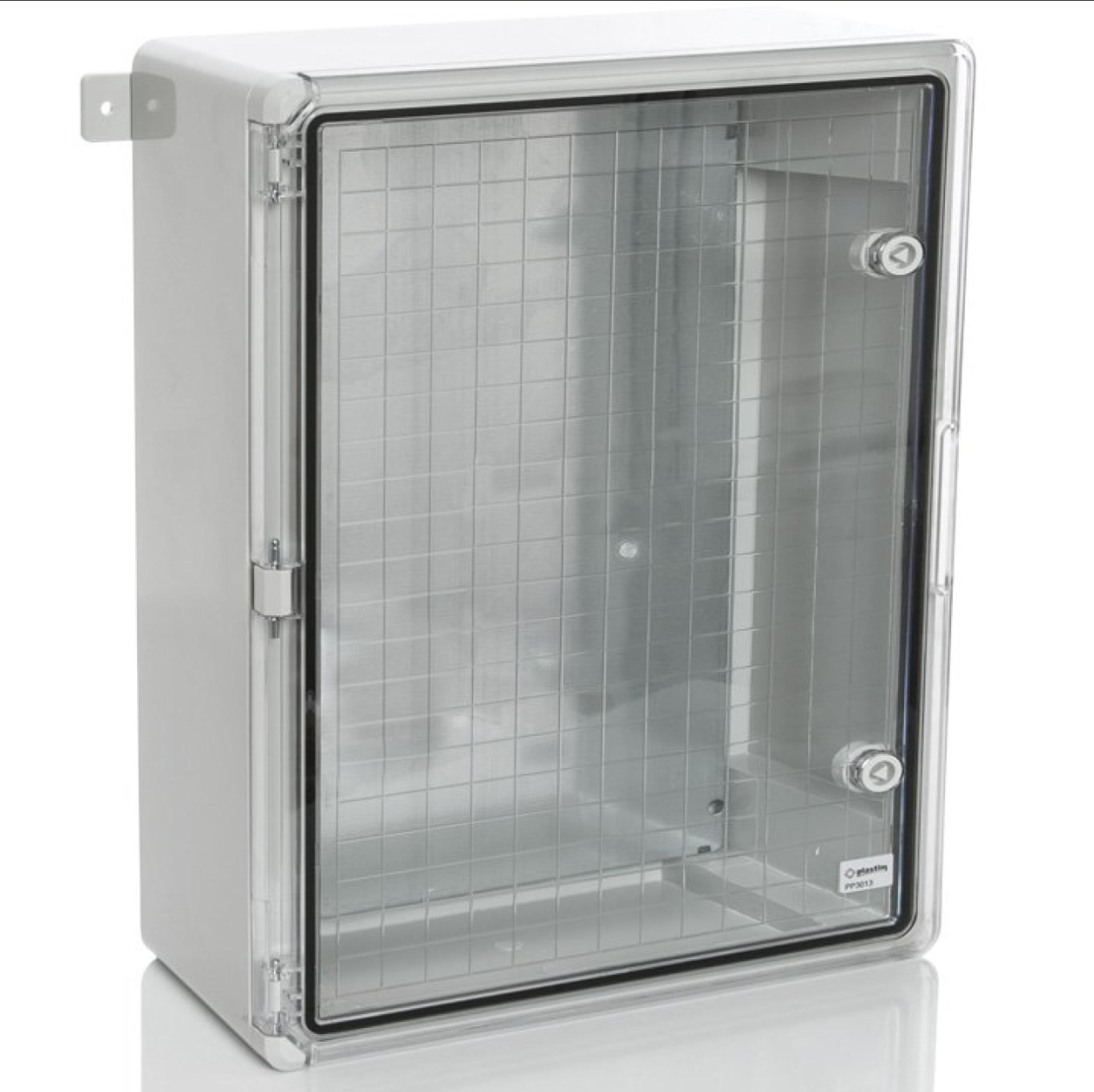

Plastic electrical panel, transparent door, seam 400x500x175mm, IP65, PP3013 Plastim

The new waterproof plastic boxes manufactured by the Turkish company Plastim open a new chapter in the use of plastic protective boxes for automation and power distribution tasks.

• Boxes reinforced with metal pin

• New box design with corner reinforcements and increased thickness of the door and the entire product.

• Extended temperature range in which the protector maintains all its enhanced properties from -35/+60C.

• Mounting panel in solid and lightweight galvanized metal, fully corrosion resistant
• Can be equipped with transparent doors and metal rails with reinforced DIN pins;

MAIN TECHNICAL FEATURES

• Mounting panel: made of galvanized steel with 1 mm thickness
• Material: HB ABS halogen-free + polycarbonate (door).
• Width: 400 mm
• Height: 500 mm
• Depth: 175 mm
• Color: RAL7035 light gray
• Protection: IP65, IK08
• Rated voltage: up to 690 V
• Maximum current: up to 800 A
• Operating temperature: -35°C + 65°C
• Weight: 4.3 kg
