Vendor: TENSE

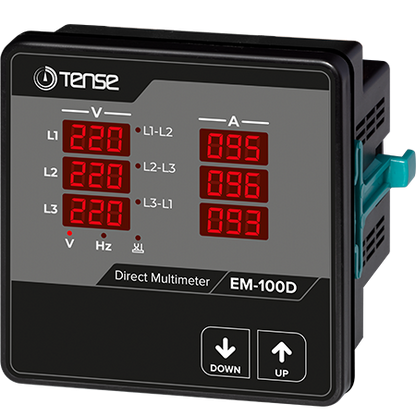

Three-Phase Digital Meter Panel Current Multimeter Voltage Frequency Indicator

Barcode: EM-100D
€61,52
€61,52
excl. VAT: €51
Low stock: 10 left
Brand: 100A
  • Description
  • Instructions
  • Payment methods
  • Warranty

Multímetro de painel trifásico TENSE - VAHz

Descrição

O multímetro digital de painel trifásico TENSE é um medidor multifuncional para monitorizar parâmetros eléctricos em sistemas trifásicos. O instrumento permite medir a tensão, a corrente e a frequência, verificar a ligação correta das fases e é adequado para equipamento industrial, máquinas e sistemas de distribuição de energia CA.

Principais vantagens

  • Medição multifuncional: I, U (L-L, L-N), Hz

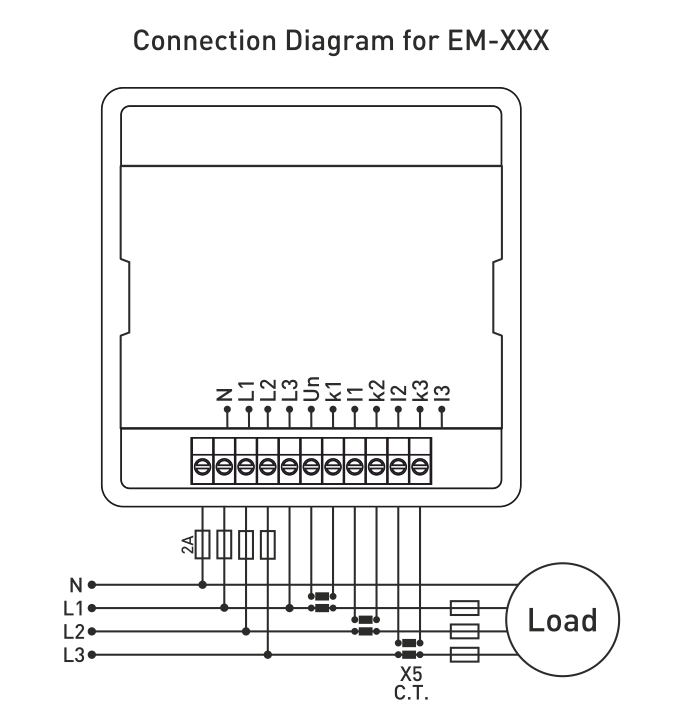

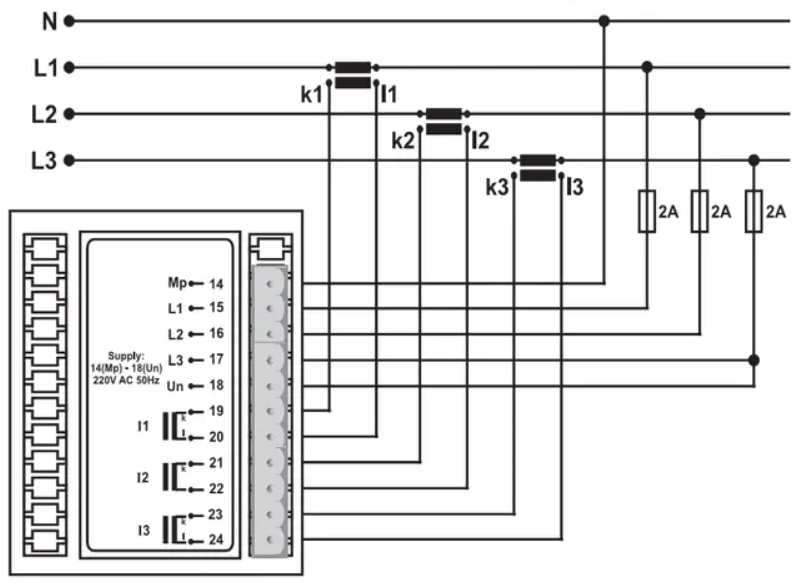

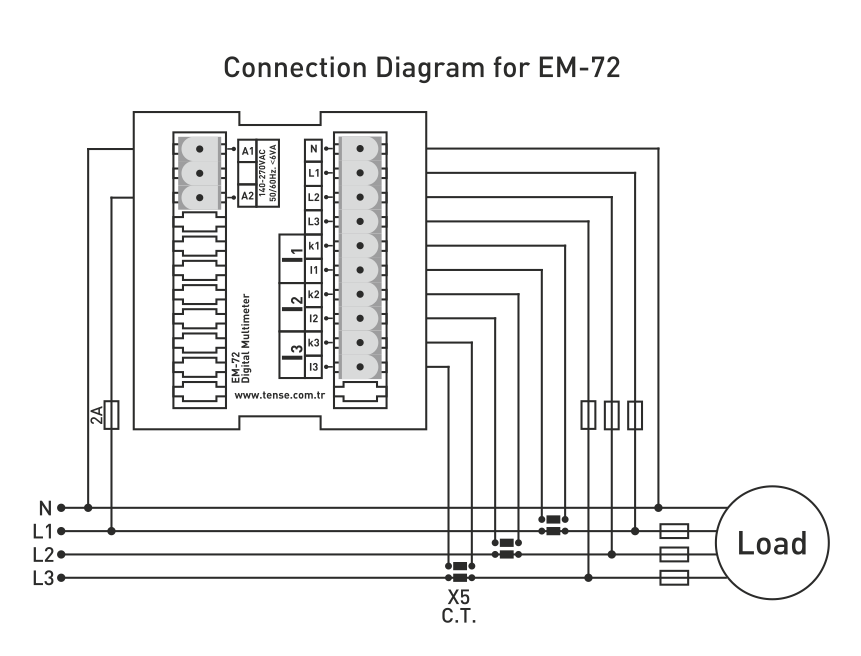

  • Medição indireta da corrente através de transformadores de corrente ligados

  • Monitorização de fases e verificação da cablagem

  • Transformador de medição incluído nos modelos EM-100D e EM-250D

  • Montagem em calha DIN standard

Faixas de medição

Parâmetros Modelos EM-06 / EM-72 EM-100D EM-250D
Corrente 5/5 ... 9995/5 A (indireta) 1 - 100 A 2 - 250 A
Tensão L-N 1 - 300 V CA 1 - 300 V CA 1 - 300 V CA
Tensão L-L 1 - 500 V CA 1 - 500 V CA 1 - 500 V CA
Frequência 40 - 60 Hz 40 - 60 Hz 40 - 60 Hz

Recomendações

  • Para os modelos EM-06 e EM-72, recomendamos os seguintes transformadores de corrente:
    60/5, 75/5, 100/5, 150/5, 200/5, 250/5, 300/5, 400/5, 500/5, 600/5, 800/5, 1000/5, 1500/5

  • Os transformadores podem ser adquiridos diretamente na nossa loja virtual.

Download

User Manual
