Mini PTC electric panel heater 15W, MPHT15, Plastim

Mini electric heater (PTC Body heater, post-tension heater) for electrical panel with anodized aluminum heat sink and overcurrent protection, for DIN rail installation with 15 watts, 110-220 volts AC or DC, MPHT15, Plastim - made in Turkey.

• Heating power: 15W

• Operating voltage: 100-250V AC/DC

• Maximum current: 2A

• Type of heating element: Self-regulating PTC resistor

• Overcurrent protection: Electronic thermal overload relay

• Electrical connection: 30 cm conductor wire, N-L-E

• IEC protection class: Class II

• Protection degree: IP20

• Operating temperature: -45 / +70 °C

• Storage temperature: -45 / +70 °C

• Heat sink: Aluminum profile, anodized

• Mounting: 35 mm DIN rail

• Mounting position: Best efficiency in vertical position

• External dimensions: 60x50x27mm

• Weight: 0.11 kg

Heating elements are used to maintain temperature and reduce humidity levels in electrical panels, automation cabinets, ATMs, payment terminals, and other electronic devices. Previously, incandescent lamps were used for these purposes - but it is clear that this method does not ensure compliance with the strict modern requirements for electrical and electronic equipment. Currently, almost all manufacturers are switching to PTC heaters, which not only provide heating but also ensure safety and durability of operation.

All heaters are equipped with electronic protection against surface overheating, which provides an additional guarantee of safe operation.

Due to the high demands of cabinet heaters, Plastim paid maximum attention to the selection of component suppliers. For example, the PTC heater supplier is the same as Schneider Electric's.

Agree that this approach to supplier selection favorably differentiates Plastim's high-quality heaters from cheap Chinese analogs.

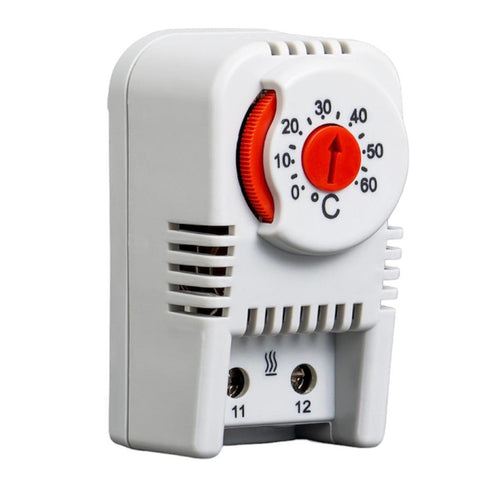

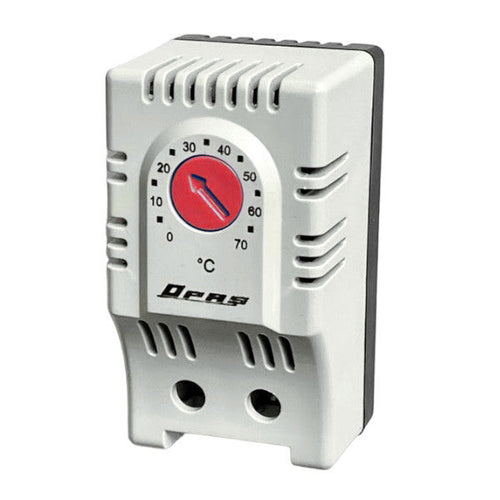

To ensure automatic temperature maintenance with this heater, a simple bimetallic thermostat or a more complex temperature controller is required. Both devices can be purchased on our website.
