Vendor: TENSE

DJ-V96T Three-phase digital panel-mounted voltmeter for AC

Barcode: DJ-V96T
€49,00
€49,00
excl. VAT: €40
13 in stock
  • Description
  • Instructions
  • Payment methods
  • Warranty

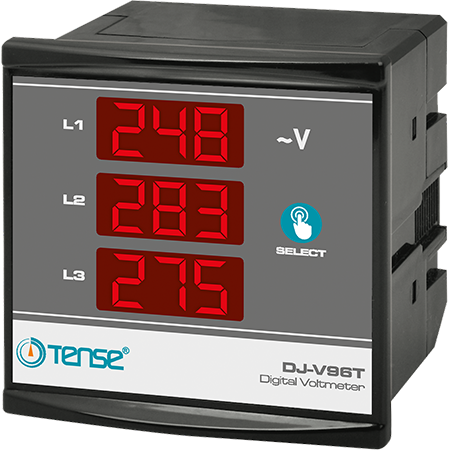

TENSE DJ-V96T three-phase digital panel voltmeter

Product description:
The DJ-V96T digital panel voltmeter is designed for the simultaneous measurement of voltage on three phases of alternating current. It can monitor phase-to-neutral (L-N) and phase-to-phase (L-L) voltages and also displays the phase sequence. The display mode is selected using the SELECT button on the front panel.

Operating principle:

  • Displays the voltage at inputs L1, L2, L3 when power is applied.

  • Pressing the SELECT button changes the display to the phase voltages L12, L23, L31 and then to the phase sequence.

  • The display of L1, L2, L3 from top to bottom indicates the correct phase sequence; the display of L1, L3, L2 indicates an incorrect phase sequence.

Technical specifications:

Parameter Value
Operating voltage (Un) 140-300 VAC
Operating frequency 50/60 Hz
Power consumption <4 VA
Operating temperature -20 °C ... +55 °C
Measurement accuracy ±1 %
L-N measurement range 5-300 V AC (min. 140 V on L1)
L-L measurement range 5-500 V AC
Display 3×3 digits, 14 mm height
Mounting hole dimensions 91×91 mm
Connection type Plug connector
Weight ≤300 g
Operating altitude <2000 m
Cable diameter 1.5 mm²
Installation On the front panel


Application:

  • Voltage monitoring in three-phase electrical distribution systems

  • Monitoring of phase sequence

  • Monitoring of L-N and L-L voltage in industrial and residential installations

Advantages:

  • Clear and accurate voltage display on all phases

  • Easy switching between display modes

  • Quick installation in a standard panel (91×91 mm)

Manual

https://files.principalelektrik.org/DJ-V96T%20%28SKU%20DJ-V96T%29.pdf
