Vendor: TENSE

Modbus RS485 to RS232 interface converter for PC via USB

Barcode: USB-CON
€44,52
€44,52
excl. VAT: €37
26 in stock
  • Description
  • Instructions
  • Payment methods
  • Warranty

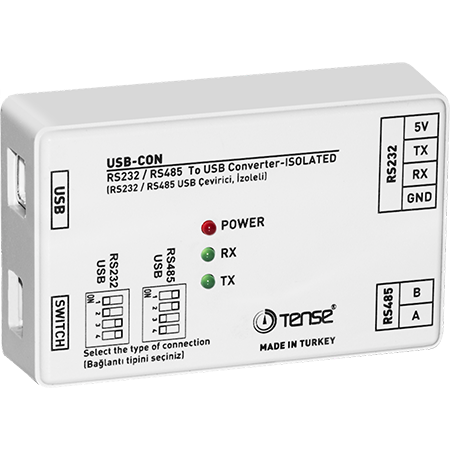

RS485/RS232 to USB - USB-CON protocol converter (TENSE, Turkey)

The USB-CON is a compact converter/gateway designed to connect RS485/RS232 (MODBUS) devices to a computer via the USB port. It allows quick connection of energy meters, multimeters, network analyzers, and other automation equipment in industrial and domestic applications.

Features and advantages

  • Direct PC connection ↔ RS485/RS232 (MODBUS)

  • No separate power supply needed - the converter is powered via USB

  • Compact dimensions: 9 × 6 × 3 cm

  • Quick connection via terminal block

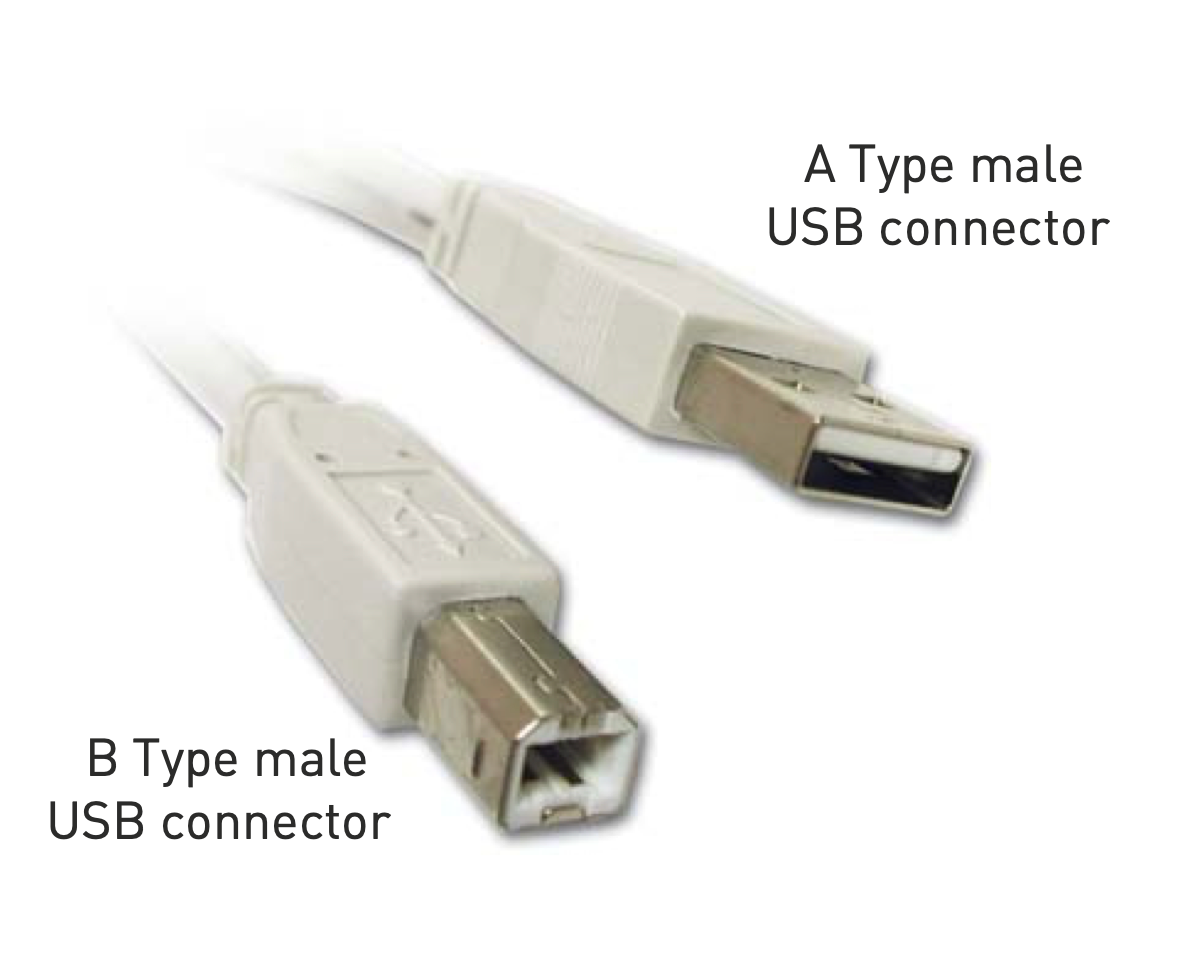

  • USB cable 1.2 m included

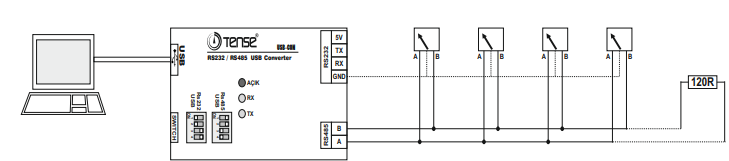

  • Support for up to 256 devices on the RS485 bus

  • LED indication for power and communication

  • High bit rate up to 203,400 bps

  • Galvanically isolated inputs and outputs

  • Wide temperature range: -20...+55 °C

  • Free software for configuration and diagnostics

Technical parameters

  • Interface: USB ↔ RS485 / RS232

  • Protocol: ModBus (RTU/ASCII)

  • Power supply: from the USB port

  • Maximum communication speed: 203,400 bit/s

  • Maximum number of devices on the RS485 bus: 256

  • Indicator: LED - Power / Data

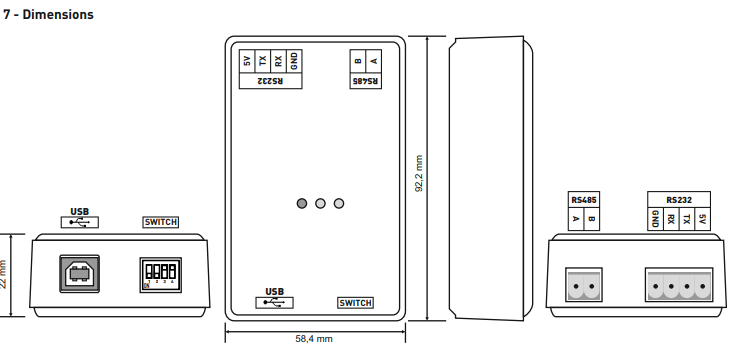

  • Dimensions: 90 × 60 × 30 mm

  • Operating temperature: -20...+55 °C
