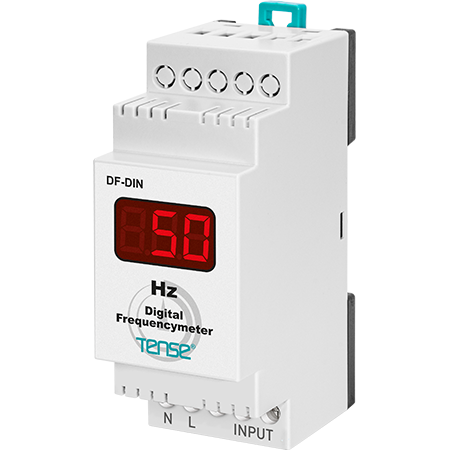

DF-DIN TENSE Frequency Meter - True RMS

True RMS class frequency meter, particularly accurate for DIN rail installation.

The DF-DIN is designed to monitor the frequency range (from 1 Hz to 400 Hz) between phase to phase or phase to neutral conductor. The instrument is used to control frequency stability in single-phase and three-phase systems, which is particularly important for industrial equipment, generators, transformers, and power systems.

With a three-digit LED display, the frequency meter provides a clear and quick view of the data. The compact housing, easy installation, and high accuracy make the Tense DF-DIN the ideal solution for panel mounting.

Application areas

• Electrical panels

• Industrial electrical panels

• Backup power systems

• Generating units

• Frequency control in laboratories and test facilities

Technical specifications

• Operating voltage: 140-280 VAC

• Operating frequency: 50/60 Hz

• Operating power: <3 VA

• Operating temperature: -20 °C ... +55 °C

• Display: 1 × 3 LEDs

• Measuring range: 1 Hz - 400 Hz

• Connection: terminal block

• Cable diameter: 2.5 mm²

• Weight: 135 g

• Operating height: <2000 m

• Mounting: on DIN rail
