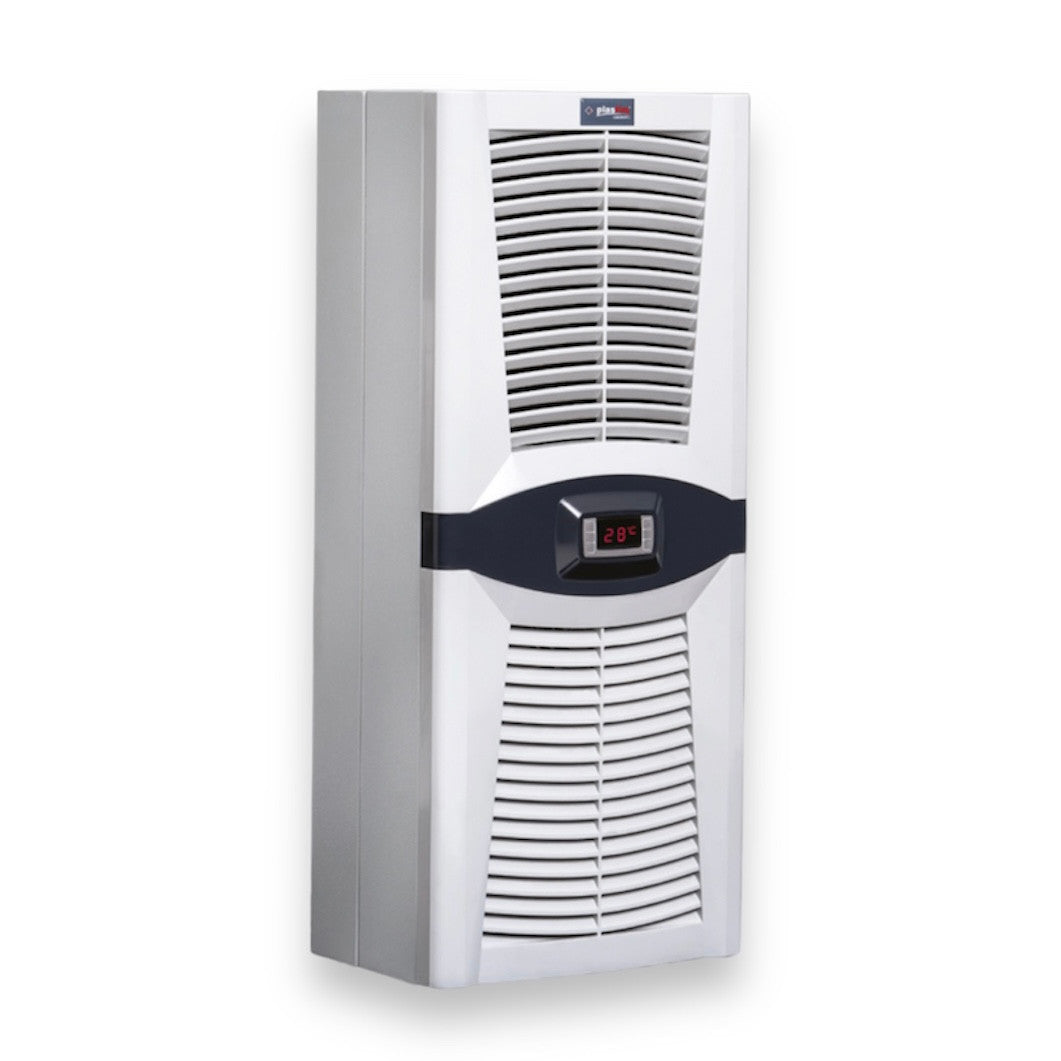

"Design Series" air conditioner for electrical panel / chiller 2500 Watt / 8550BTU for side or wall mounting of the electrical panel and automation panel.
The PAD2550.01 (PLASTIM) electrical panel air conditioner includes the latest generation HIGHLY open-type rotary compressor, Dixell thermostat, condensate evaporator, and limit switch to control the opening of the electrical panel door.
Everything needed to install the air conditioner for cabinets is included - gaskets, discharge tube, mounting screws, power connector.
| TECHNICAL DATA | PAD2100.01 |
| Cooling capacity L35 / L35 | 2100W / 7200BTU |
| Operating voltage | 230VAC |
| Frequency | 50/60 Hz |
| Starting current | 10A |
| Operating current | 3.8A |
| Fuse | 16A |
| Energy consumption | 800W |
| Operating range | 0-55 °C |
| Factory thermostat settings | 35 °C |
| Differential | 4 °C |
| Max air volume internal circuit | 510 m³/h |
| Max air volume external circuit | 625 m³/h |
| Refrigerant type | R134a |
| Refrigerant quantity | 700gr |
| Dimensions | 980x430x270mm |
| Device weight | 46kg |
| Noise level | 80dB |
| Protection rating (internal circuit) | IP 54 |
| Protection rating (external circuit) | IP 34 |
| Color | RAL7035 |
| Compressor | HIGHLY/HITACHI |
| Compressor type | Rotary |
| Fans | EBMPAPST |
| Mounting method | Wall mounting |
