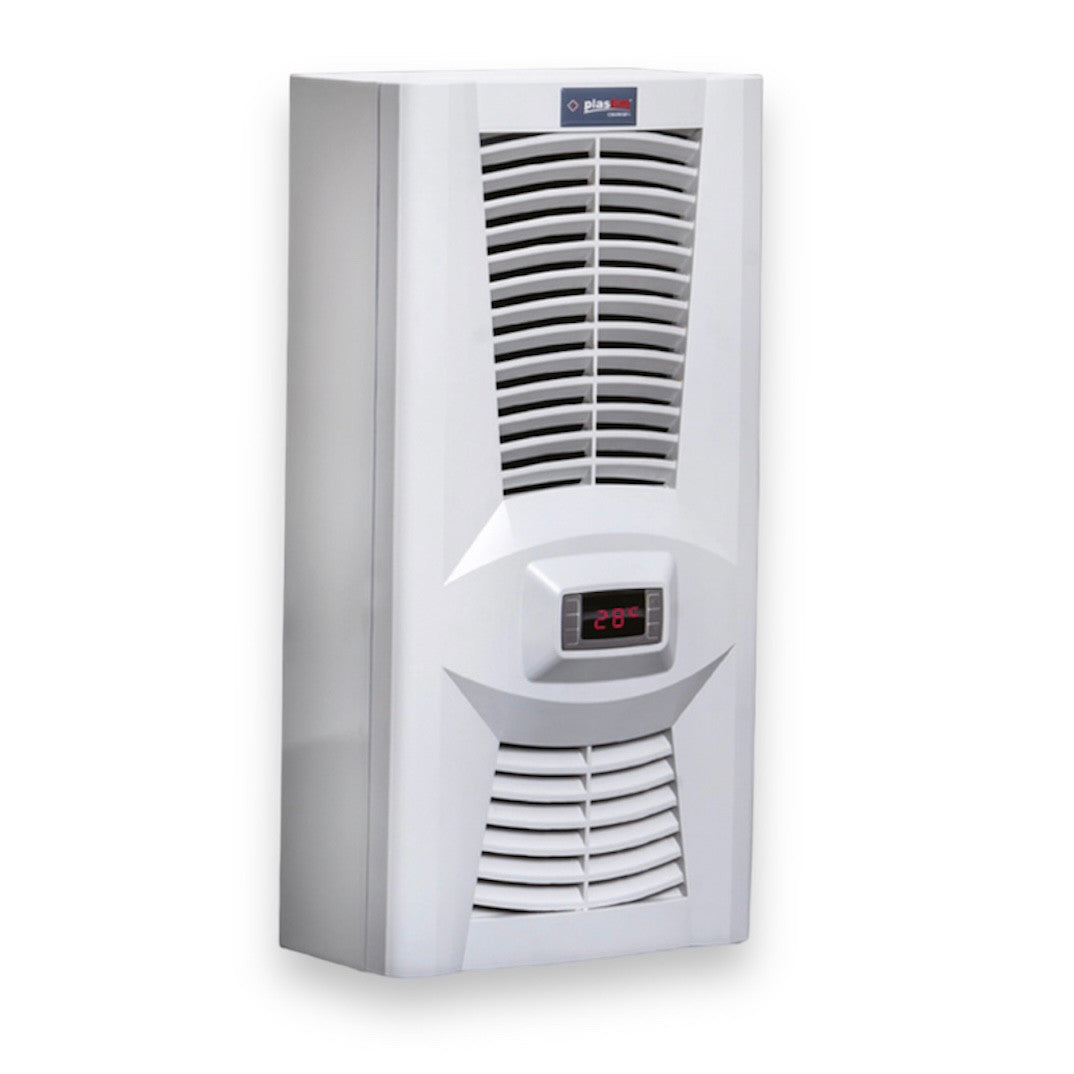

Air conditioning "Design Series" for electrical panel / chiller 380 Watt / 1300 BTU for side or wall mounting of electrical and automation panels.
The PAD0380.01 (PLASTIM) air conditioner for electrical panels includes the latest generation HIGHLY open-type rotary compressor, Dixell thermostat, condensation evaporator, and limit switch to control the opening of the electrical panel door.
Everything needed to install the air conditioner for the cabinet is included - seals, discharge tube, mounting screws, power connector.
| TECHNICAL DETAILS | PAD0380.01 |
| Cooling capacity L35 / L35 | 380W / 1300BTU |
| Operating voltage | 230VAC |
| Frequency | 50/60 Hz |
| Starting current | 3.7A |
| Operating current | 1.1A |
| Fuse | 5A |
| Power consumption | 325W |
| Operating range | 0-55 °C |
| Factory thermostat setting | 35 °C |
| Differential | 4 °C |
| Max volume. Internal circuit air volume | 340 m³/h |
| Max volume. External circuit air volume | 340 m³/h |
| Refrigerant type | R134a |
| Refrigerant quantity | 120gr |
| Dimensions | 560x285x150mm |
| Device weight | 15kg |
| Sound level | 75dB |
| Protection rating (internal circuit) | IP 54 |
| Protection rating (external circuit) | IP 34 |
| Color | RAL7035 |
| Compressor | HIGHLY/HITACHI |
| Compressor type | Rotary |
| Fans | EBMPAPST |
| Mounting method | Wall mounting |
