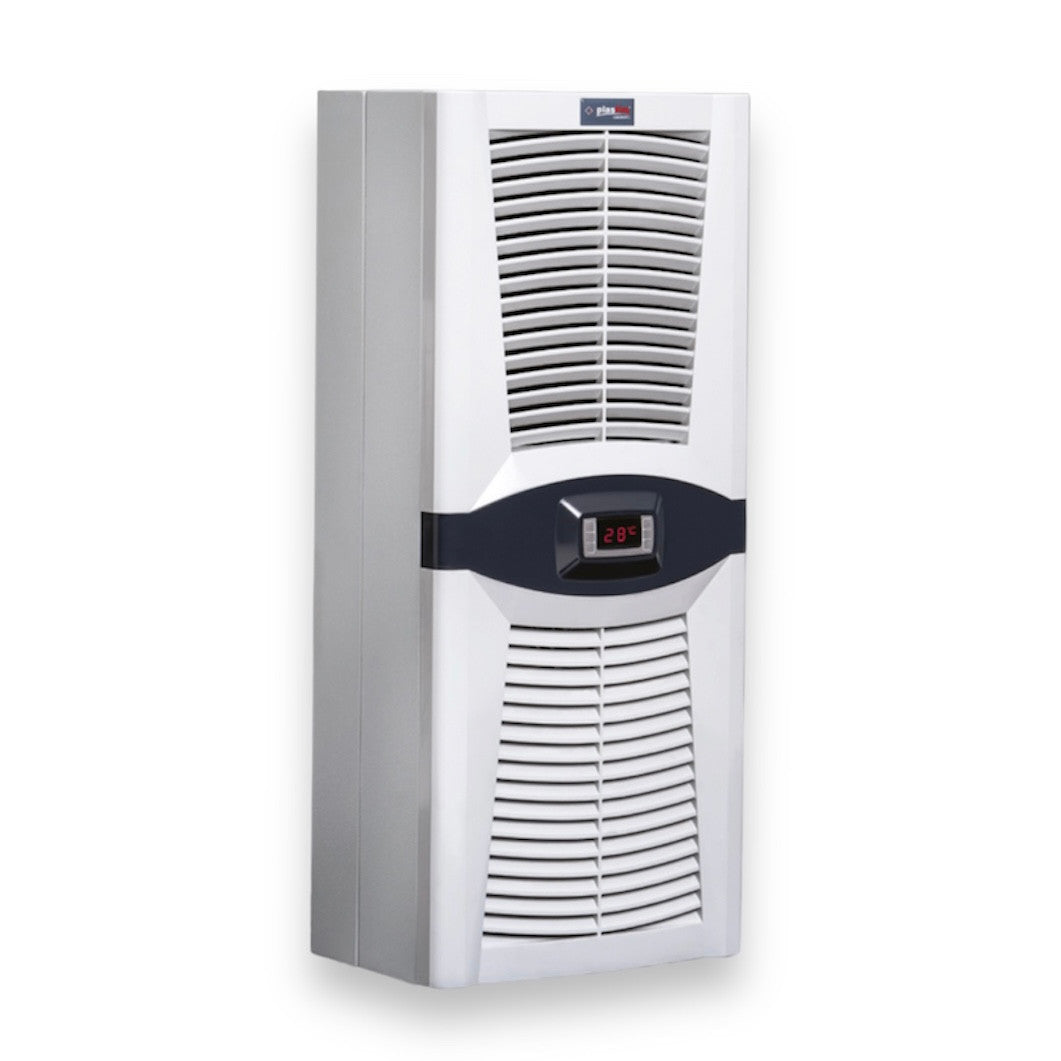

"Design Series" air conditioner for electrical panel / chiller 2500 Watt / 8550BTU for side or wall mounting on the electrical panel and automation panel.
The PAD2550.01 (PLASTIM) air conditioner for electrical panels includes the latest generation HIGHLY open-type rotary compressor, Dixell thermostat, condensate evaporator, and limit switch to control the opening of the electrical panel door.
Everything needed to install the air conditioner for the cabinet is included - seals, discharge tube, mounting screws, power connector.
|
TECHNICAL DETAILS |
PAD2550.01 |
|
Cooling capacity L35 / L35 |
2500W / 8550BTU |
|
Operating voltage |
230VAC |
|
Frequency |
50/60 Hz |
|
Starting current |
11A |
|
Operating current |
3.8A |
|
Fuse |
16A |
|
Power consumption |
800W |
|
Operating range |
0-55 °C |
|
Factory thermostat setting |
35 °C |
|
Differential |
4 °C |
|
Max volume. Internal circuit air volume |
510 m³/h |
|
Max volume. External circuit air volume |
625 m³/h |
|
Refrigerant type |
R134a |
|
Refrigerant quantity |
750gr |
|

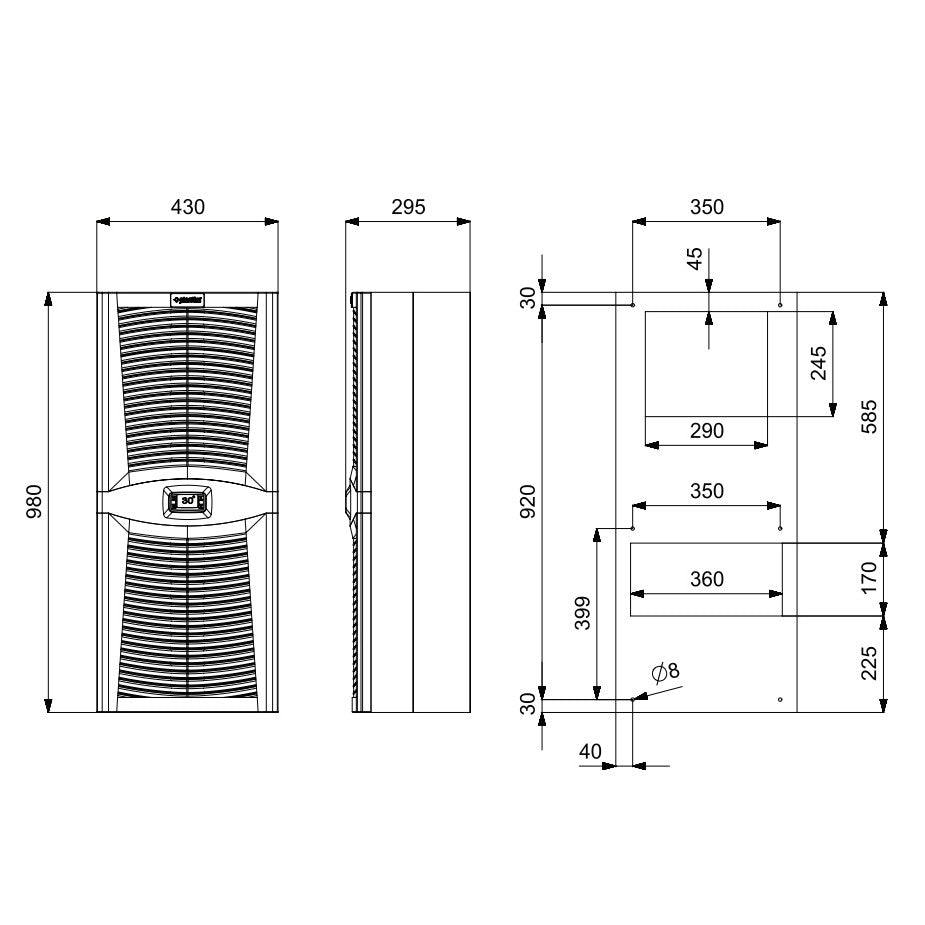

Dimensions |
980x430x270mm |
|
Device weight |
47kg |
|
Sound level |
82dB |
|
Protection rating (internal circuit) |
IP 54 |
|
Protection rating (external circuit) |
IP 34 |
|
Color |
RAL7035 |
|
Compressor |
HIGHLY/HITACHI |
|
Compressor type |
Rotary |
|
Fans |
EBMPAPST |
|
Mounting method |
Wall mounting |
