Vendor: Plastim

Resistive heater for electrical panels with fan 500W, PFHT500, PLASTIM

Barcode: PFHT500
€132,32
€132,32
excl. VAT: €109
Low stock: 8 left

Frequently bought together

c3cfab0c784e65162240905b50437ff7

 – Bimetallic thermostat 0-60C NC, PTHT, Plastim

€9,24
€9,24
b7ec43b09a311119aa7e890b2130bb9f

 – Bimetallic thermostat NC switching, switchable, range 0-60°C - temperature switches

€9,76
€9,76
  • Description
  • Payment methods
  • Warranty

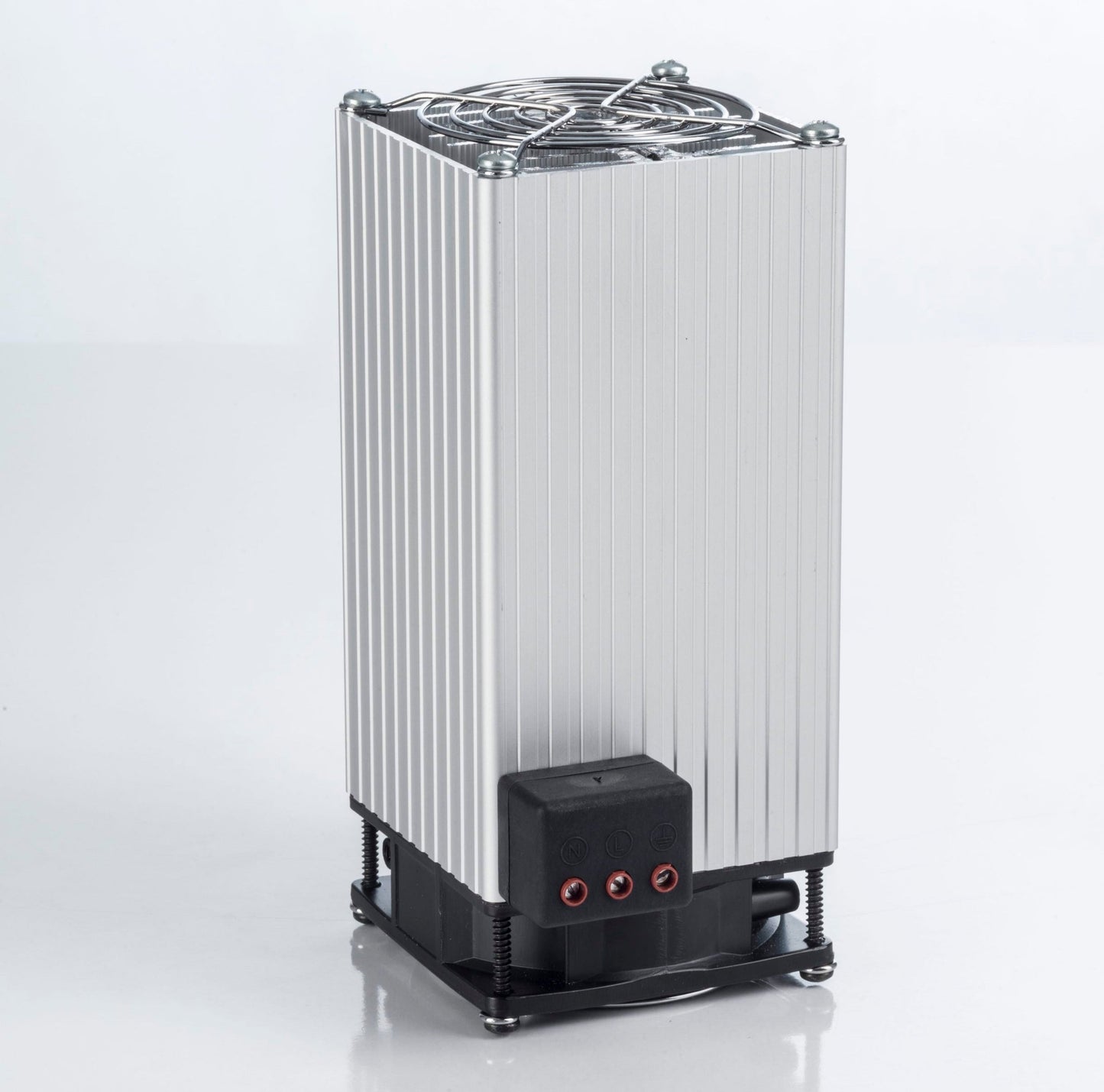

Electric panel heater (resistance heater, post-heater) with fan, with anodized aluminum heat sink and overcurrent protection, for DIN rail installation with 250 watts, 220/230 volts AC, PFHT250, Plastim - made in Turkey.

  • Heating power: 500W

  • Operating voltage: 220/230V AC, 50/60Hz

  • Maximum current: 2.4 A

  • Type of resistance heater.

  • Axial fan: 80x80x25mm 35m3/h

  • Overcurrent protection: electronic thermal overload relay

  • Electrical connection: 3-pole N-L-E terminal

  • IEC protection class: Class II

  • Protection degree: IP20

  • Operating temperature: -25 / +70 °C

  • Storage temperature: -25 / +70 °C

  • Heat sink: Aluminum profile, anodized

  • Mounting: 35 mm DIN rail

  • Mounting position: Best efficiency in vertical position

  • External dimensions: 182x80x110mm

  • Weight: 1.2 kg

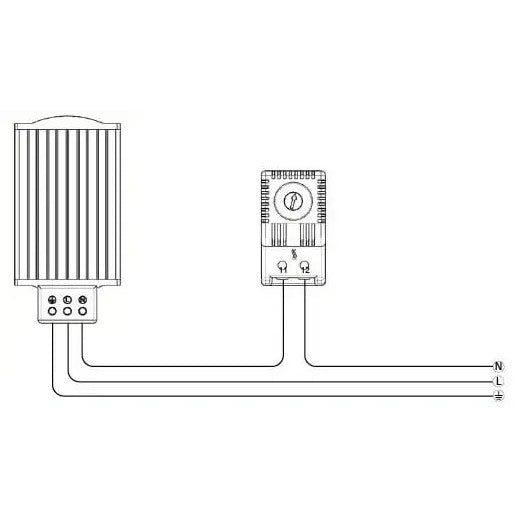

To ensure automatic temperature maintenance with this heater, a simple bimetallic thermostat or a more complex temperature controller is required; both devices can be purchased on our website.
